Products >> Interactive Smart Board >>

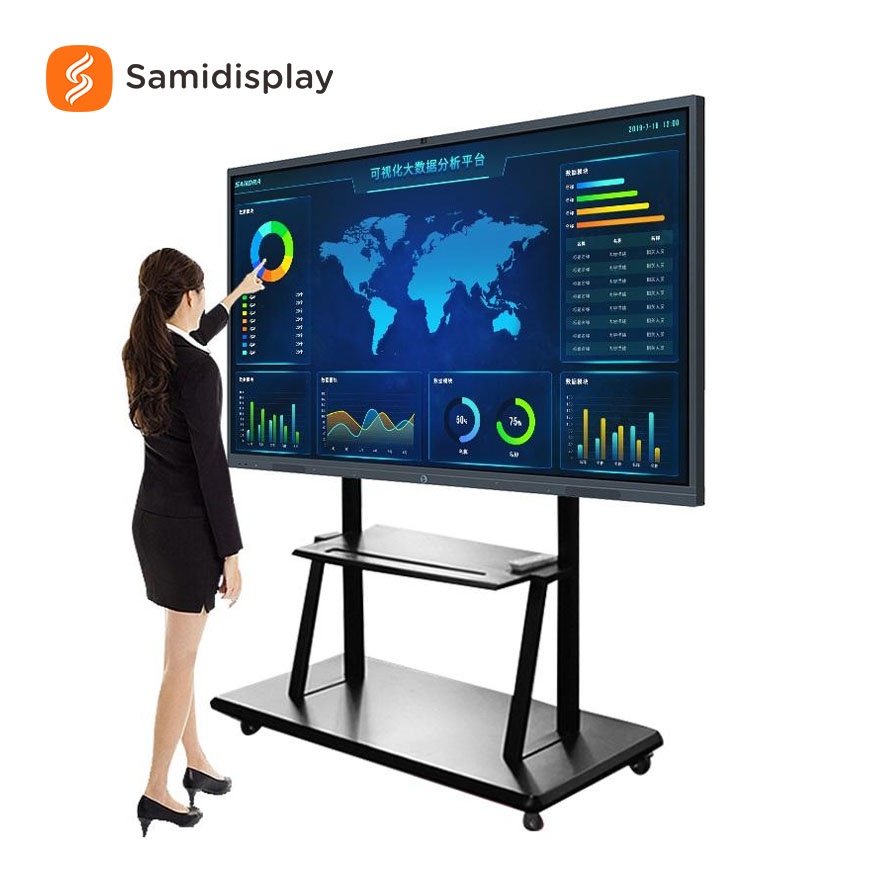

Commercial Grade smart teaching whiteboard System for Digital

Product No.：SM-IW86AHT
Screen Size：86 inch
Resolution：3840x2160
Brightness：450cd/m2
Installation Way：Floor stand / Wall Mount
Warranty：24 months
Operating System：Android & Windows
Certificate：CE ROHS
Online Inquiry

Product Description

The smart teaching whiteboard series is designed to support modern digital classrooms and collaborative meeting environments.

Organizations that adopt a professional smart teaching whiteboard benefit from improved communication, clearer presentations and

more engaging learning experiences.

A high quality smart teaching whiteboard allows teachers, trainers and presenters to interact directly with content on the screen.

Users can write notes, highlight key information and explain complex ideas visually. The intuitive touch

interaction ensures that every operation on the smart teaching whiteboard feels natural and responsive.

In education environments, the smart teaching whiteboard plays an important role in transforming traditional teaching methods.

Teachers can present multimedia lessons, annotate learning materials and save notes instantly. The integration

of the interactive collaboration board platform provides powerful digital tools that make lessons more dynamic and interactive.

For corporate environments, the smart teaching whiteboard enhances collaboration during meetings and presentations. Teams can share

content, brainstorm ideas and review documents together. By combining visual communication with the capabilities

of the interactive touch screen board interface, organizations can significantly improve meeting productivity.

The smart teaching whiteboard is also designed with flexible compatibility, allowing it to connect with external devices and software

applications. This makes the interactive collaboration board suitable for classrooms, conference rooms, training centers and digital

exhibition environments.

Overall, the smart teaching whiteboard series represents a reliable solution for modern interactive communication. By combining

advanced display technology, responsive touch control and intelligent collaboration tools, the interactive touch screen board helps

organizations build more efficient learning and presentation spaces.

If you would like more information on this or our other digital screen products, please get in touch with the sales team today.
E-mail: sales@samidisplay.com
Call us: +86 136 70087790

	Screen Size	65 inch	75 inch	85 inch	98 inch
Panel info	Display Area(mm)	1428 ×803	1650×928	1872 ×1053	2158×1214
	Aspect Ratio	16:9
	Resolution	3840*2160
	Brightness	350cd/m2
	Contract Ratio	4000:1	6000:1	4000:1	1200:1
	View Angle	89/89/89/89
	Response times	6ms	6ms	6ms	8ms
	Color	1.07B(8bit)
	Life Span	30,000 hrs
Dual system (Android & PC Windows)
Android Parameter	CPU	Android 14.0,1.5 GHz, Quad Core G51MP2
	RAM	4GB / 8G
	ROM	32GB Standard / 64G / 128G
	USB	1 input
	LAN	RJ45
	Wi-Fi	WIFI 802.11b/g/n
Android Interface	Interface Info	HDMI Input2 VGA Input1 PC-Audio Input1 YPBPR Input1 AV Input/Output1 USB 2.02 RF Input1 Touch-USB1 RS2321 LAN Input2 Earphone Output1 WiFi： WiFi 2.4G1，WiFi 5G*2
Windows Parameter	OS	Windows 11 professional
	CPU	Intel i3,i5,i7 optional
	GPU	Intergrated
	RAM	4G /8G /16G
	ROM	128G SDD /256G /512G /1T Option
	Sound card	Intergrated
Windows interface	Interface Info	HDMI Output：1 LAN Input：1 VGA Output： 1 USB：USB2.02，USB3.02 Audio：1xLINE-OUT &MIC-IN
Front interface	Power Button	1
	USB 3.0	2
	Touch pen	1
	Camera	Built in 8MP Camera,Four array microphone
Power	Voltage	100～240V 50/60HZ
	Max power(No OPS)	≤220W	≤300W	≤350W	≤450W
	Built-in speaker	6Ω/18W*2
General info	Dimension	1479934106MM	16991049106MM	19461192.113MM	2228.1330106MM
	Packing size	1600mm215m1025mm	1870mm220m1150mm	2110mm240m1315mm	2500mm440m1630mm
	N.W (KG)	45KG	60KG	95KG	124KG
Accessories	Standard: WIFI Antenna * 3, Touch Pen 1, Remote Control1, User Mannual 1 , 1.5M Power Cable 1, Wall Bracket and screws *1 Option: Wireless screen projector, Smart Pen, Floor Standing Bracket

FAQ

1. What operating systems does the Interactive Whiteboard support?

Our interactive whiteboard supports Android system by default, and it can also support Windows system through an OPS computer module. Users can easily switch between Android and Windows to meet different teaching and conference needs.

2. What screen sizes are available for the Interactive Whiteboard?

We provide multiple sizes including 55", 65", 75", 86", 98", and 110". These sizes are widely used in classrooms, training centers, conference rooms, and educational institutions.

3. Does the Interactive Whiteboard support multi-touch writing?

Yes, the interactive whiteboard supports high-precision infrared touch technology with up to 20-point multi-touch. Multiple users can write, draw, and interact on the screen simultaneously, making it perfect for collaborative learning and meetings.

4. Can the Interactive Whiteboard be used for online teaching or video conferences?

Yes, the device supports video conferencing software such as Zoom, Microsoft Teams, and Google Meet when connected to the internet. It can also be used for online teaching, remote meetings, and interactive presentations.

5. Does the Interactive Whiteboard come with built-in teaching software?

Yes, our interactive whiteboard comes with built-in interactive whiteboard software, which supports screen annotation, file sharing, wireless screen mirroring, and multimedia presentation, making teaching and meetings more efficient.

6. What warranty and after-sales support do you provide?

We offer up to 3 years warranty for the interactive whiteboard. Our technical team also provides remote technical support, user manuals, and installation guidance to ensure smooth operation for our customers.
