Products >> Interactive Display >>

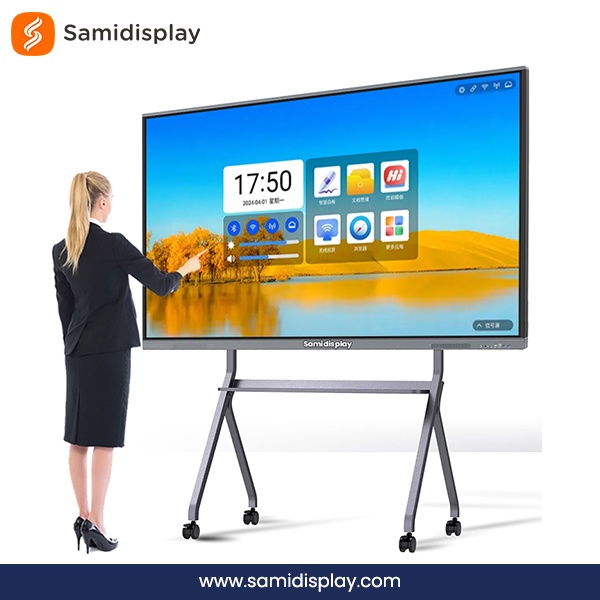

65 inch Interactive Flat Panel

Product No.：SM-IW65HT
Price：US$600-$700
Screen Size：65 inch
Resolution：3840x2160
Brightness：450cd/m2
Installation Way：Floor stand / Wall Mount
Warranty：24 months
Operating System：Android & Windows
Certificate：CE ROHS
Online Inquiry

Samidisplay interactive flat panel offers stunning 4K content resolution and delivers a large, shared viewing
experience for your workgroup or classroom. With built in software and Touchback functionality, it’s easy for
multiple users to draw, write, and interact with content at the same time. With Interactive Tools, you can take
notes over an image, record ideas on a whiteboard, and mark up documents without printing or scanning.

Modern Interactive Whiteboard
The stylish enclosure design really makes this touch screen stand out from the crowd. The bezels are so thin that the display
area occupies more than 91% of the overall screen size. Designed with aluminium bezels and a moulded polymer rear, the
screen is so lightweight it can even be mounted on a stud wall.
4K Display
The 4K Ultra HD display delivers incredible image quality with four times resolution higher than Full HD. Optimised for
viewing distances both near and far the display allows your content to take center stage for all your visual communication.
Multi-Device Wireless Mirroring
Wirelessly project the displays of up to four smartphones, tablets, laptops, PCs or Macs. Using mobile devices you can mirror
the display in both directions, and even take control of the touch screen. Mirroring via 5GHz allows for fast response, all
without the need of external wires or transmitters.
Easy File Sharing
Once your device is connected you can quickly and easily share documents, videos, images and audio files stored on your
smartphone, tablet, laptop or PC directly to the touch screen. You can also share files from the touch screen to your device
via email or by scanning a QR code with your mobile or tablet.
Flexible Working Tools
Personalise your experience by changing the background colour of the display, as well as the colour and thickness of your
drawing tools.
Smooth Annotations
The line thickness of your annotations varies depending on pressure and speed, allowing you to achieve a realistic and natural
handwriting experience.
ConnectShare Dongle
Quickly and conveniently mirror from your PC, laptop or Mac using the ConnectShare Dongle. Just insert it and launch the
built in software, without the need to install any applications.
Optional OPS Windows PC
For seamless integration onto existing networks an OPS PC can be installed into the rear of the display, allowing for ultimate
flexibility to switch between Android and Windows effortlessly.
20 Touch Points
Ideal for large group collaboration, up to twenty users can interact with the screen simultaneously when working on
group projects.
Touch Screen Monitor
As well as using the built in Android system these displays can also be used as a touch screen monitor by connecting a PC or
laptop via HDMI and USB.
Easy Access Ports and Controls
As well as having a power and standby button there are also two front facing USB ports. These are ideal for quickly and
conveniently connecting USB sticks containing files that you need to access from MeetingPad or the optional OPS PC.
Etched Glass
Improves tactility for smoother touch gestures, especially useful for multiple users. The anti-glare nano coating also diffuses
external light improving optical clarity.
Integrated Speakers
The interactive smart whiteboard have two integrated super slim 10W speakers for presentations that include an audio element.

If you would like more information on this or our other digital screen products, please get in touch with the sales team today.
E-mail: sales@samidisplay.com
Call us: +86 136 70087790

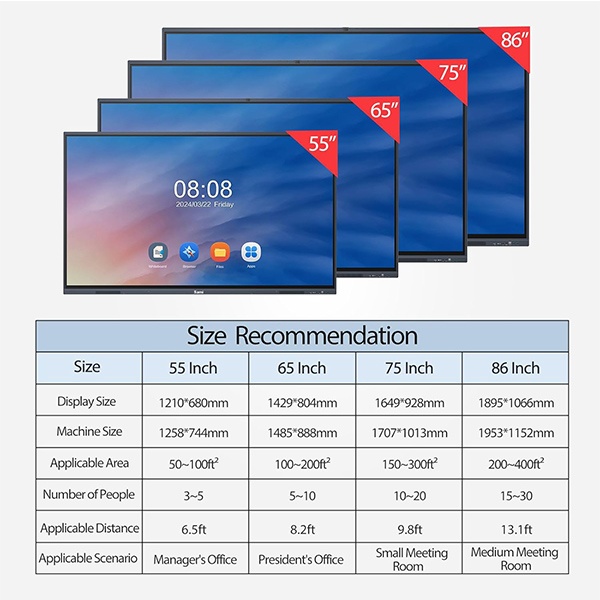

	Screen Size	65 inch	75 inch	85 inch	98 inch
Panel info	Display Area(mm)	1428 ×803	1650×928	1872 ×1053	2158×1214
	Aspect Ratio	16:9
	Resolution	3840*2160
	Brightness	350cd/m2
	Contract Ratio	4000:1	6000:1	4000:1	1200:1
	View Angle	89/89/89/89
	Response times	6ms	6ms	6ms	8ms
	Color	1.07B(8bit)
	Life Span	30,000 hrs
Dual system (Android & PC Windows)
Android Parameter	CPU	Android 11.0,1.5 GHz, Quad Core G51MP2
	RAM	4GB
	ROM	32GB Standard
	USB	1 input
	LAN	RJ45
	Wi-Fi	WIFI 802.11b/g/n
Android Interface	Interface Info	HDMI Input2 VGA Input1 PC-Audio Input1 YPBPR Input1 AV Input/Output1 USB 2.02 RF Input1 Touch-USB1 RS2321 LAN Input2 Earphone Output1 WiFi： WiFi 2.4G1，WiFi 5G*2
Windows Parameter	OS	Windows 10 professional
	CPU	Intel i3,i5,i7 optional
	GPU	Intergrated
	RAM	4/8GB
	ROM	128G SDD/256G/512G/1T Option
	Sound card	Intergrated
Windows interface	Interface Info	HDMI Output：1 LAN Input：1 VGA Output： 1 USB：USB2.02，USB3.02 Audio：1xLINE-OUT &MIC-IN
Front interface	Power Button	1
	USB 3.0	2
	Touch pen	1
	Camera	Built in 8MP Camera,Four array microphone
Power	Voltage	100～240V 50/60HZ
	Max power(No OPS)	≤220W	≤300W	≤350W	≤450W
	Built-in speaker	6Ω/18W*2
General info	Dimension	1479934106MM	16991049106MM	19461192.113MM	2228.1330106MM
	Packing size	1600mm215m1025mm	1870mm220m1150mm	2110mm240m1315mm	2500mm440m1630mm
	N.W (KG)	45KG	60KG	95KG	124KG
Accessories	Standard: WIFI Antenna * 3, Touch Pen 1, Remote Control1, User Mannual 1 , 1.5M Power Cable 1, Wall Bracket and screws *1 Option: Wireless screen projector, Smart Pen, Floor Standing Bracket

Q1: What is the minimum order quantity?
MOQ=1 unit. Different order quantity different price.
Q2: What payment methods your company accept?
It’s usually wire transfer T/T. For partner relationship, we may consider other payment terms.
Q3: How long is the warranty time for your products?
We provide 1 year warranty for all of our products and supply life-time maintenance.
Q4: I haven't done business with your company before, how can i trust your company?
Sami Technology Limited is a professional manufacturer in China since 2012. We supply to all over the world, and have
good name in the market. We can do video factory audit to confirm that we are 100% original manufacturer.
Q5: what's the shipment terms and delivery time of your company?
It depends on order quantity, shipping address and shipping methods.
Q6: Do you give any discount ?
Yes, we are looking for long term business cooperation. We will always offer customers the reasonable price based on the
right solution.
Q7: I would like to ask you if it's possible to have my logo on the product.
Logo printing service is available for mass order based on our M.O.Q
Q8: What kind of certification do you get?
We have ISO9001 Quality Control certification. Also CE/ROHS/FCC/CCC etc for different countries’ market.
Q9: What’s the HS CODE?
HS CODE: 8528591090
